DF Smart mist cannon

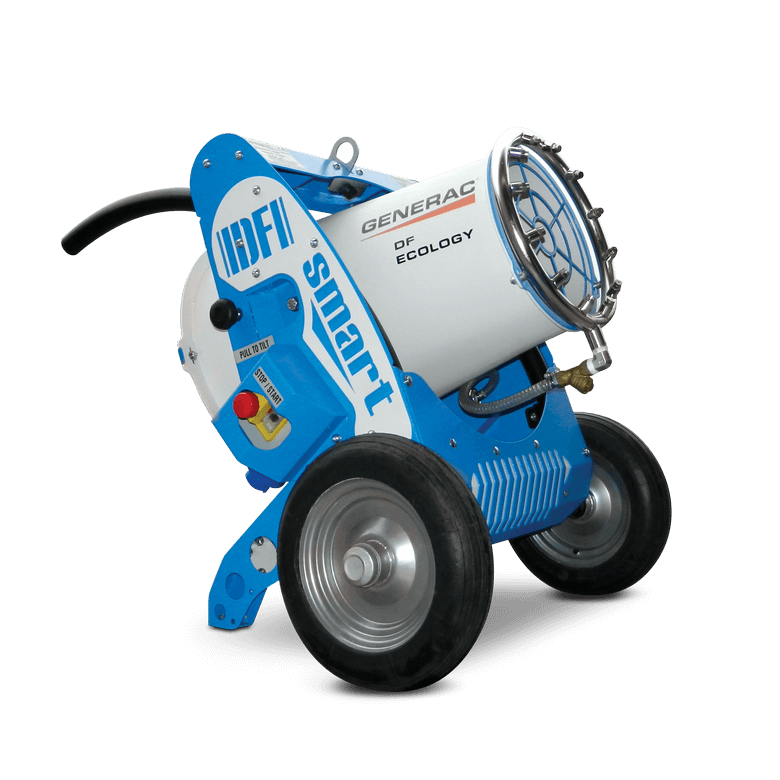

The Dust Fighter DF Smart is the smallest dust control unit of the Dust Fighter range for outdoor jobs. Extremely light and easily portable, it can be used in a lot of different application fields on small working areas.
Standard Equipment
- Wheels and handles for transport
- Stainless steel crown with nozzles
- Water inlet filter
- Emergency stop button
- Tilting system
DF Smart
| Electrical engine | Single phase 230 V 50 Hz – 2,2 kW |
| Electrical connection | 2 P+T socket – 16 A – IP 67 |
| Water connection | Express type 1/2” quick connection |
| Fan | 9 nylon blades, aluminium hub |
| Air flow | 90 mc/min |

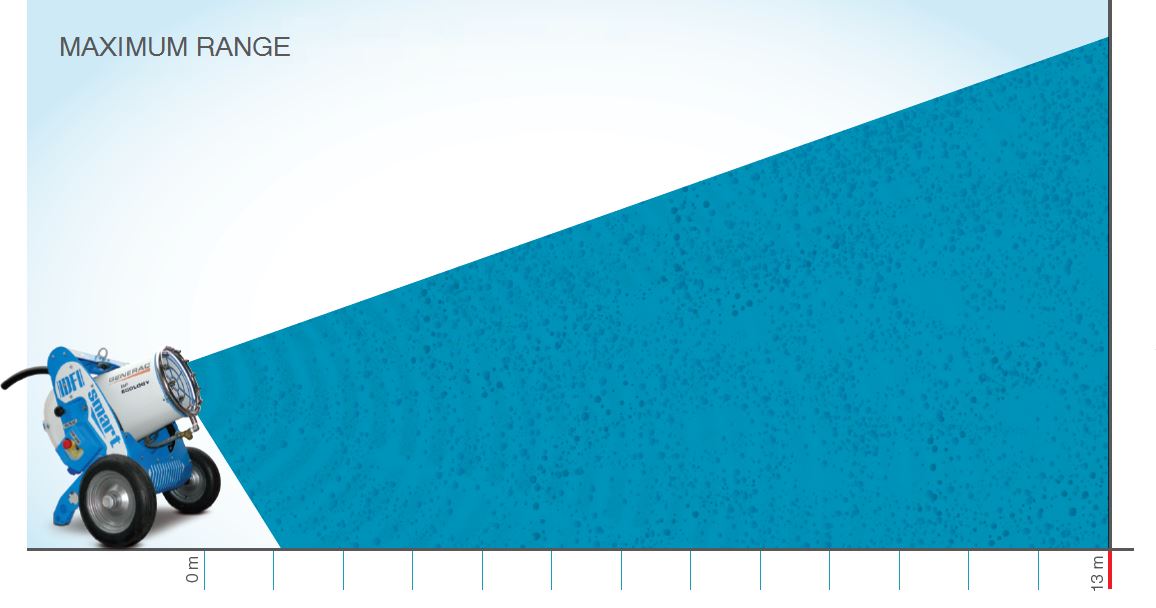

| Coverage (*without wind) | 13 mt* |
| Nozzles holder | Stainless steel with 12 connection |
| Nominal pressure | 1 to 5 bar |
| Water filter | 300 microns |
| Tilting range | From 10° to 50° |
| Dimensions | 985 x 785 x 835 (L x W x H mm) |
| Weight | 79 Kg |
| Water consumption | 1.0 bar – 5.4 L/min |
| 1.5 bar – 6.6 L/min | |
| 2.0 bar – 7.5 L/min | |
| 2.5 bar – 8.5 L/min |
